A special agitator shaft with symmetrically arranged agitator pegs and sleeves of tungsten carbide for wear protection devel- Vertical, batch operation mill for the preparation of tungsten Ideal flow behaviour due to a special agitator peg arrange-ment and the hemispherically shaped chamber floor integrated screen plate for grinding media separationIntensive cooling through a double-wall grinding tank and cooled circulation pipeline
Product inlet via rotor / immersion tube system prevents back flow of grinding media into the feed line.
Generally, there are two ways to obtain nano-powders. A bottom-up manufacturing method (bottom up) for chemical methods, such as chemical precipitation, sol-gel process (sol-gel),... Another method is physical method, which changes the powder particles from big to small (top down), such as mechanical ball milling,... And so on.
The Development In 1963, the first vertical agitator was developed internationally, the first horizontal agitator was developed in 1975, the first horizontal agitator bead mill with eccentric disks was introduced to the public and the horizontal disc grinder was introduced, in 2004, which became the industry standard. In the following years, the grinding media separation systems, the geometry of the grinding disks and the various grinding chamber materials were further developed.

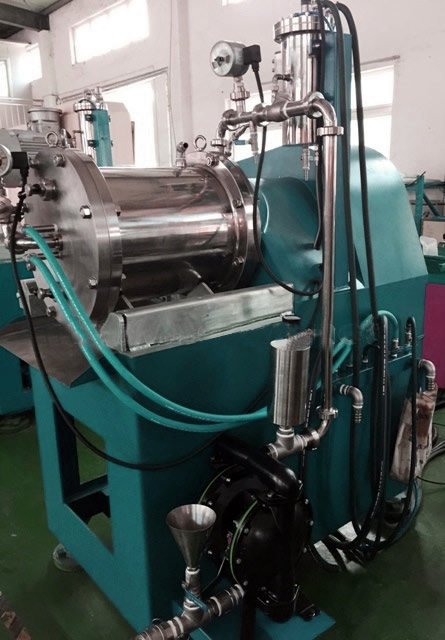

The grinding system pin nanomill shows the evolutionary develop- ment of system with the rotor-slotted pipe separating system. The enclosed horizontal agitator mill is designed for highest product throughput rates and possesses a pin grinding system for highest grinding intensity.
In 2011, we developed the first zirconia comminution chamber technology in China. It has no metal ion pollution and is used in batteries, pharmaceuticals, glazes, ink and food.
纳米研磨机在当前应用范围很广泛,在使用的过程中大家要认识到其结构进而特征,这样才能获得更好的使用体验。而纳米研磨机在安装的时候可以安装在简洁的机器框架上,通常可以运用V字型的皮带来保障能量的传输,主要适合0.4~2mm的研磨介质。那么纳米砂磨机的结构如何?
欧式纳米研磨机采用的是双端面机械密封为压力进行阻抗的装置,在锥形研磨腔的间隙里搅拌器的加工区域的容量比较小,可以很好的降低产品被污染的可能,更加有利于产品的转子的更换。在研磨腔主要采用高耐磨的材料,这样可以很好的改变研磨腔的体积,更好的保障产品的质量。
以上内容就是关于纳米研磨机的相关内容的介绍了,相信对大家或多或少的有些帮助。总的来说,纳米研磨机的应用很广泛,所以其相应的参数以及技术更应该被大家所熟悉。希望本文可以给大家很好的参考。
