A special agitator shaft with symmetrically arranged agitator pegs and sleeves of tungsten carbide for wear protection devel- Vertical, batch operation mill for the preparation of tungsten Ideal flow behaviour due to a special agitator peg arrange-ment and the hemispherically shaped chamber floor integrated screen plate for grinding media separationIntensive cooling through a double-wall grinding tank and cooled circulation pipeline

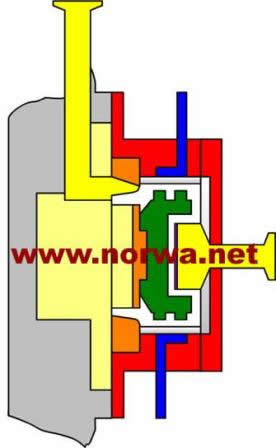

Product inlet via rotor / immersion tube system prevents back flow of grinding media into the feed line.
Generally, there are two ways to obtain nano-powders. A bottom-up manufacturing method (bottom up) for chemical methods, such as chemical precipitation, sol-gel process (sol-gel),... Another method is physical method, which changes the powder particles from big to small (top down), such as mechanical ball milling,... And so on.
The Development In 1963, the first vertical agitator was developed internationally, the first horizontal agitator was developed in 1975, the first horizontal agitator bead mill with eccentric disks was introduced to the public and the horizontal disc grinder was introduced, in 2004, which became the industry standard. In the following years, the grinding media separation systems, the geometry of the grinding disks and the various grinding chamber materials were further developed.
The grinding system pin nanomill shows the evolutionary develop- ment of system with the rotor-slotted pipe separating system. The enclosed horizontal agitator mill is designed for highest product throughput rates and possesses a pin grinding system for highest grinding intensity.

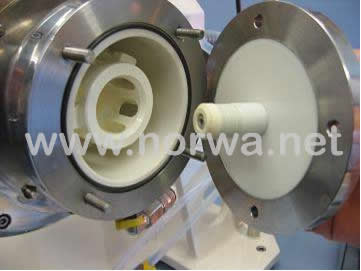

In 2011, we developed the first zirconia comminution chamber technology in China. It has no metal ion pollution and is used in batteries, pharmaceuticals, glazes, ink and food.

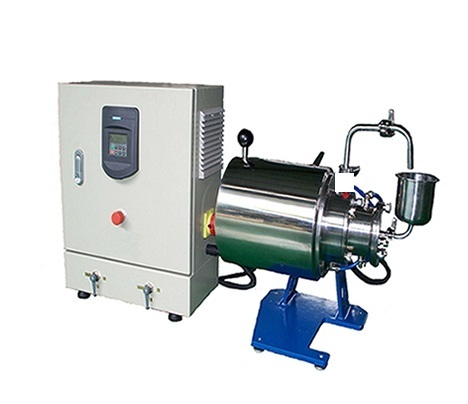

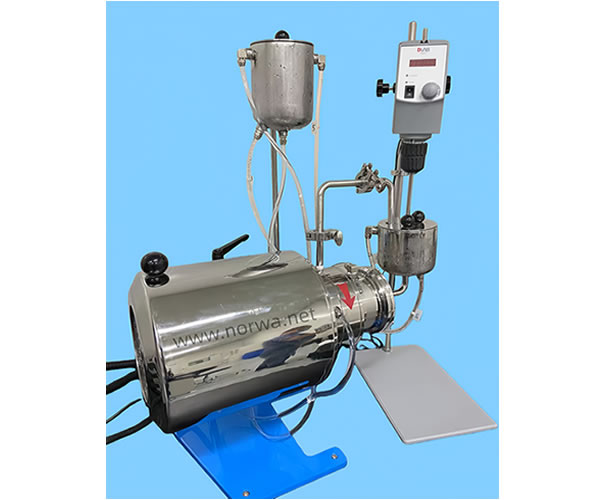

实验之星,采用美国杜邦Kalrez全氟耐磨溶剂高速轴密封,一款适用于大学、中科院研究院、企业研究广泛配方研发的无金属离子污染的纳米研磨机、纳米砂磨机,实验室专用,西门子MINI面板操作方便,流量可精确控制,实验数据可精确放大生产,220V常规电压、无需气动设备,小巧、轻便,可90°旋转,方便锆球填充和清洗。
筒体材质
|
研磨轴材质
|
进料系统
|
分离系统(mm)
|
密封系统
|
护等级
|
研磨介质
|
德国耐磨钢/氧化锆陶瓷 /碳化硅陶瓷
|
特耐磨钢GX/95陶瓷
|
进口转子泵带陶瓷耐磨涂层
|
转子自动分离系统0.15
|
进口高速轴密封(美国杜邦耐溶剂)
|
IP55
|
氧化锆珠0.30-2.0mm
|
有效容积(ml)
|
加工批量(mL)
|
转速((r/min)
|
驱动功率(kw)
|
单位流量(L/h)
|
极值细度(nm)
|
长度(mm)
|
宽度(mm)
|
高度(mm)
|
重量(kg)
|
300
|
150-800
|
0-3000
|
0.75-1
|
5-50
|
D50≤50
|
400
|
200
|
450
|
75
|
