Acquisition of license to manufacture batch mills A special agitator shaft with symmetrically arranged agitator pegs and sleeves of tungsten carbide for wear protection devel- Vertical, batch operation mill for the preparation of tungsten Ideal flow behaviour due to a special agitator peg arrange-ment and the hemispherically

Development of the first continuous agitator bead mill Product inlet via rotor / immersion tube system prevents back flow of grinding media into the feed line.

Product inlet via rotor / immersion tube system prevents back flow of grinding media into the feed line.

In 2015, we developed the first zirconia comminution chamber technology in China. It has no metal ion pollution and is used in batteries, pharmaceuticals, glazes, ink and food.

The grinding system pin nanomill shows the evolutionary develop- ment of system with the rotor-slotted pipe separating system. The enclosed horizontal agitator mill is designed for highest product throughput rates and possesses a pin grinding system for highest grinding intensity.

The Development In 2019, the first vertical agitator was developed internationally, the first horizontal agitator was developed in 1975, the first horizontal agitator bead mill with eccentric disks was introduced to the public and the horizontal disc grinder was introduced, in 2004, which became the industry standard. In the following years, the grinding media separation systems, the geometry of the grinding disks and the various grinding chamber materials were further developed.

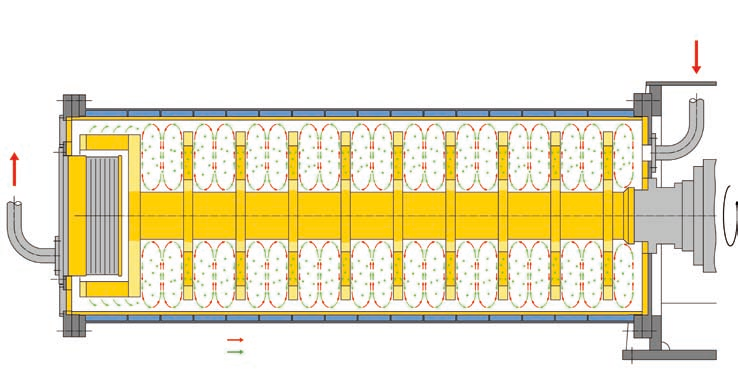

工作原理:
销棒按照一定顺序安装在搅拌轴上,物料在进料泵的作用下进入研磨腔,入口的设计是在驱动连接法兰的一端,物料的流向与机械轴承向反底端一方,大大减轻了机械密封的承受压力,延长其使用寿命,在搅拌轴高速运转中,物料和研磨介质的混合物发生高效相对运动,其结果,物料固体颗粒被有效分散、研磨,经一组转子缝隙分离过滤器后,得到优质产品。
结构设计:销棒设计
主要特点:
|
研磨筒
|
棒销材质
|
研磨轴
|
分离系统(mm)
|
研磨筒体内衬材质
|
筒体密封
|
研磨介质
|
|
特耐磨钢带冷却
|
硬质合金耐磨钢、聚氨酯,陶瓷
|
不锈钢
|
0.05-0.4
|
特耐磨钢、碳化硅、氧化锆、德国聚氨脂
|
双端面机械密封
|
氧化锆珠、硅酸锆、氧化铝、氮化硅、硬质合金球
|
|
研磨容积(L)
|
加工批量(L)
|
转速((r/min)
|
驱动功率(kw)
|
细度(μm)
|
长度(mm)
|
宽度(mm)
|
高度(mm)
|
重量(kg)
|
|
2
|
3-80
|
600-2000
|
7.5
|
≤微米级
|
710
|
550
|
1500
|
400
|
