A special agitator shaft with symmetrically arranged agitator pegs and sleeves of tungsten carbide for wear protection devel- Vertical, batch operation mill for the preparation of tungsten Ideal flow behaviour due to a special agitator peg arrange-ment and the hemispherically shaped chamber floor integrated screen plate for grinding media separationIntensive cooling through a double-wall grinding tank and cooled circulation pipeline
Product inlet via rotor / immersion tube system prevents back flow of grinding media into the feed line.
Generally, there are two ways to obtain nano-powders. A bottom-up manufacturing method (bottom up) for chemical methods, such as chemical precipitation, sol-gel process (sol-gel),... Another method is physical method, which changes the powder particles from big to small (top down), such as mechanical ball milling,... And so on.
The Development In 1963, the first vertical agitator was developed internationally, the first horizontal agitator was developed in 1975, the first horizontal agitator bead mill with eccentric disks was introduced to the public and the horizontal disc grinder was introduced, in 2004, which became the industry standard. In the following years, the grinding media separation systems, the geometry of the grinding disks and the various grinding chamber materials were further developed.

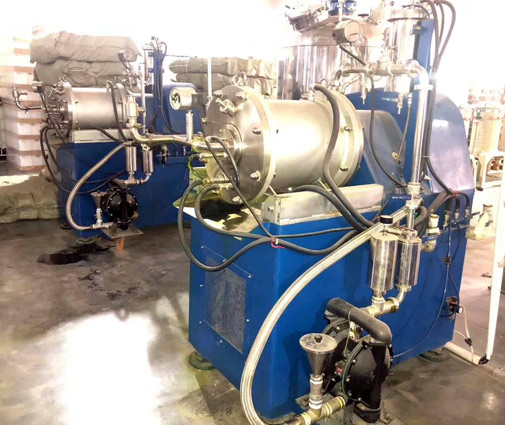

The grinding system pin nanomill shows the evolutionary develop- ment of system with the rotor-slotted pipe separating system. The enclosed horizontal agitator mill is designed for highest product throughput rates and possesses a pin grinding system for highest grinding intensity.
In 2011, we developed the first zirconia comminution chamber technology in China. It has no metal ion pollution and is used in batteries, pharmaceuticals, glazes, ink and food.
砂磨机在市场上的应用范围很广泛,所以许多人对其分类也非常感兴趣,那么砂磨机的分类主要是什么?据了解,砂磨机主要分为棒销式砂磨机和涡轮砂磨机、盘式砂磨机三大类。今天就来给大家简单的说一说关于专业砂磨机的那些事儿。
棒销砂磨机比较常见的包括金属棒销砂磨机,陶瓷棒销砂磨机和聚氨酯棒销砂磨机三种类型,棒销砂磨机具有通过量大,维修方便的特点。陶瓷砂磨机可以实现无污染杨,产量也是很高的。聚氨酯棒销砂磨机拥有节能,环保的特点,而且对水性无机氧化物的研磨,无金属离子析出。棒销砂磨机具有设计紧凑,可以减少设备的占地空间,比较适合复杂的环境。
那么看完上面的就是好,相信对于砂磨机的分类主要是什么大家都清楚了,其实砂磨机的应用范围非常广,不同的分类适用于不同的场景,人们要根据实际需求进行选择。相信诺研会为大家提供符合需求的砂磨机磨机。
